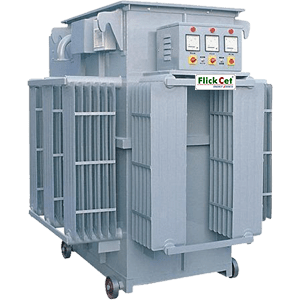

Servo Voltage Stabilizer Single Phase Oil Cooled (Linear Type)
Description
Servo Voltage Stabilizer Single Phase
Oil Cooled (Linear Type)
Oil Cooled (Linear Type)
Automatic Voltage Stabilizers hold its potential forunits having either L. T. Supply or Low capacity H.T. Connection. The same can be manufactured for Balanced Supply for unbalanced Loads or Unbalanced Supply for Unbalanced Loads. The range of input supply for which the stabilizer is designed depends upon the voltage condition at the supply point. However some standard ranges for L. T. Stabilizer are as under:
Technical specification
| Parameters | Performance | |||||||||
| Capacity | 100 KVA to 2000KVA | |||||||||
| Input voltage | 300-460v , 340-460v, 360-460v (Phase to Phase) | |||||||||
| Output Voltage | 2400V / 415Volts+1% (Phase to Phase)) | |||||||||
| Type | Suitable for : Balanced Load & Balanced Supply | |||||||||
| Application | Indoor / Outdoor Type (Optional) | |||||||||
| Phase | 3-Ph, 4Wires | |||||||||
| Frequency | 50 Hz | |||||||||
| Response Time | Fraction of Second | |||||||||
| Speed of Correction | 8-16 V/Sec | |||||||||
| Mode of Operation | Automatic/ Manual/ hand Control | |||||||||
| Suitability | Suitable for all Power factors | |||||||||
| Wave From distortion | Nil | |||||||||
| Duty Cycle | 100% Continuous | |||||||||
| Effciency | 98% | |||||||||
| Cooling | ONAN (Oil Natural Air Natural) | |||||||||
| IS Standard | On Wheels | |||||||||
| Transformer Oil | IS:335 | |||||||||
| Operating Temp | 0oC – 5oC Above Ambient | |||||||||
| Transformer Oil | IS:335 | |||||||||
| Laminations Used | CRGO Laminations – M4 Grade | |||||||||
| Copper Used | 99.9% Pure Electrolytic Grade | |||||||||
| Carbon Rollers Used | High Grade Graphite Rollers | |||||||||
www.flickcet.com All specifications are subject to change due to technology upgradation without notice.*
